Divisible duct seals 25mm

Filoform divisible duct sealing sets for subducts have been developed to provide and effective and simple solution to all Gas and Watertight duct sealing requirements.

This modular system enables you to install it easily onto to new and existing installations. Due to the compact design the seals can be installed in all situations, even in locations with difficult access.

For use on subducts of 25mm.

PATENTED

Download product sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Gas and Watertight up to 0,5 bar.
Suitable for retrofitting.
Easy installation.
Slim design.
Other versions available upon request.

Specifications

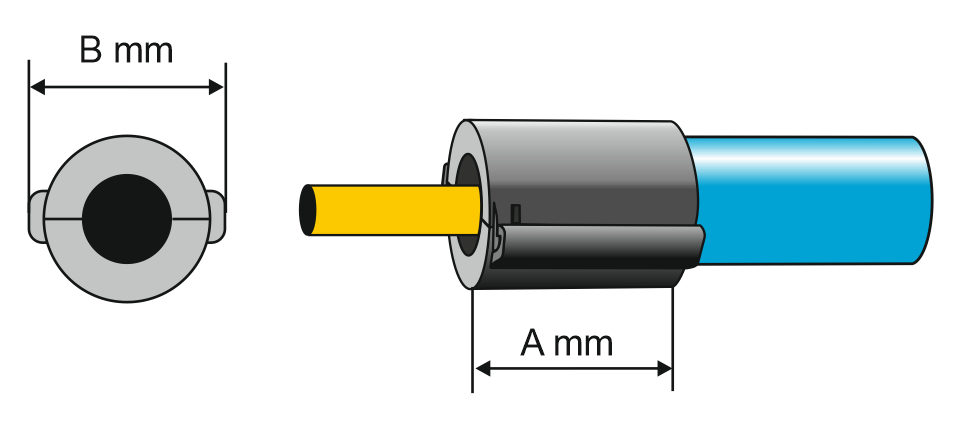

Dimensions

ductafdichting 25mm

Type	Dimension A	Dimension B	Weight (gr.)
25mm	40	37	26

Material specification

Plastic scales	glassfibre reinforced
Sealing plug	TPU
Sealing	up to 0,5 bar
Pull-out force duct seal vs duct	≥ 250N
Mechanical compression strength	≥ 1000N, 10 sec.

More info

More Information

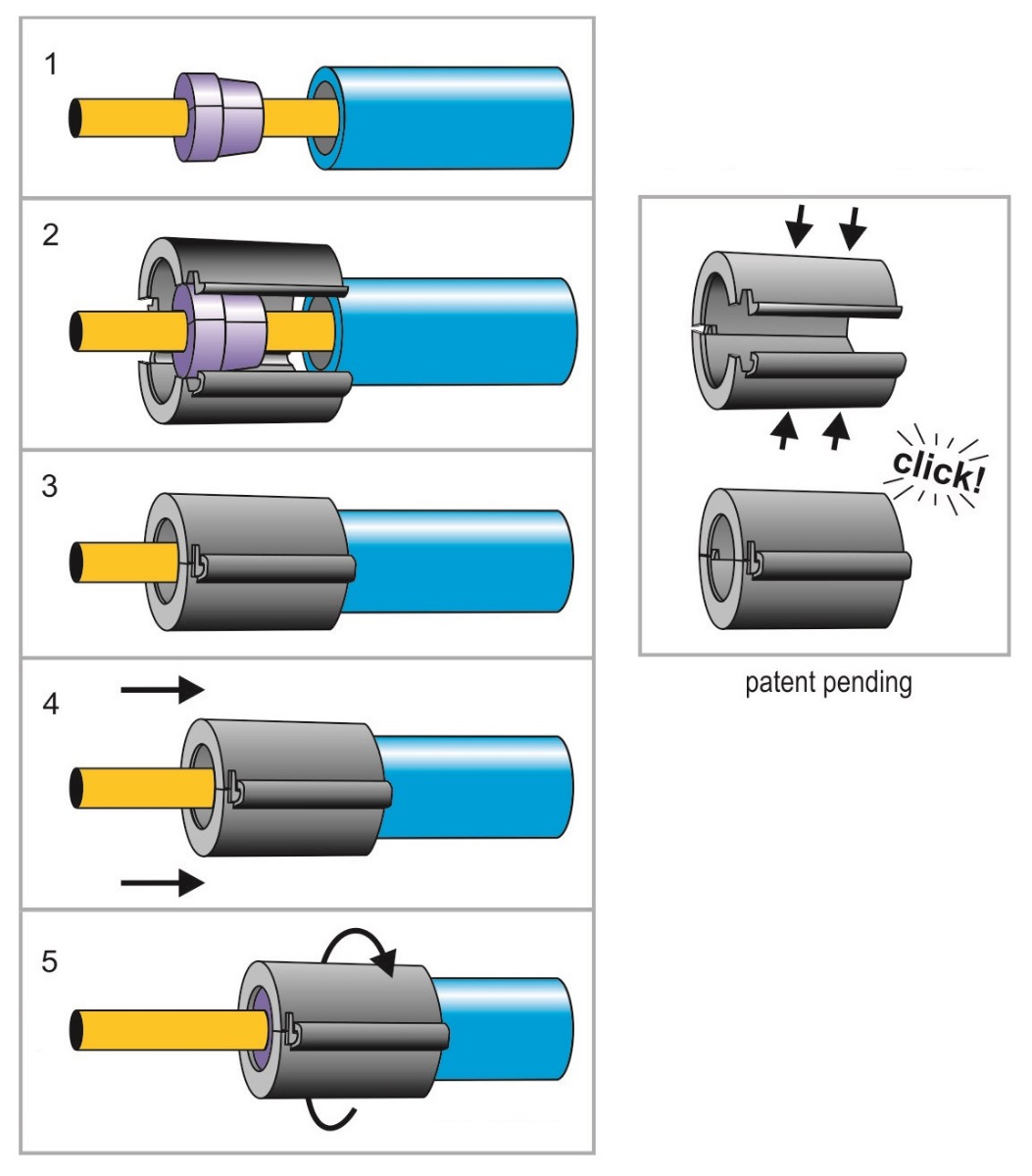

More information	Contents 2 pieces of plastic shells with click together fixings 1 Synthetic rubber seal Illustrated installation instructions
Home page product list	No

Products

Grouped product items
Sku	Product Name	Colour	Cable Diameter (mm)	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit
7822825.2	Duct seal 25mm/3,7-4,7mm	grey	3,7-4,7	Order unit 25 pcs/carton
7822825.3	Duct seal 25mm/4,7-6,5mm	pink/blue	4,7-6,5	Order unit 25 pcs/carton
7822825.4	Duct seal 25mm/6,5-8,5mm	white	6,5-8,5	Order unit 25 pcs/carton
7822825.5	Duct seal 25mm/8,5-10mm	red	8,5-10	Order unit 25 pcs/carton
7822825.6	Duct seal 25mm/10-12mm	green	10-12	Order unit 25 pcs/carton
7822825.7	Duct seal 25mm/12-14mm	yellow	12-14	Order unit 25 pcs/carton
