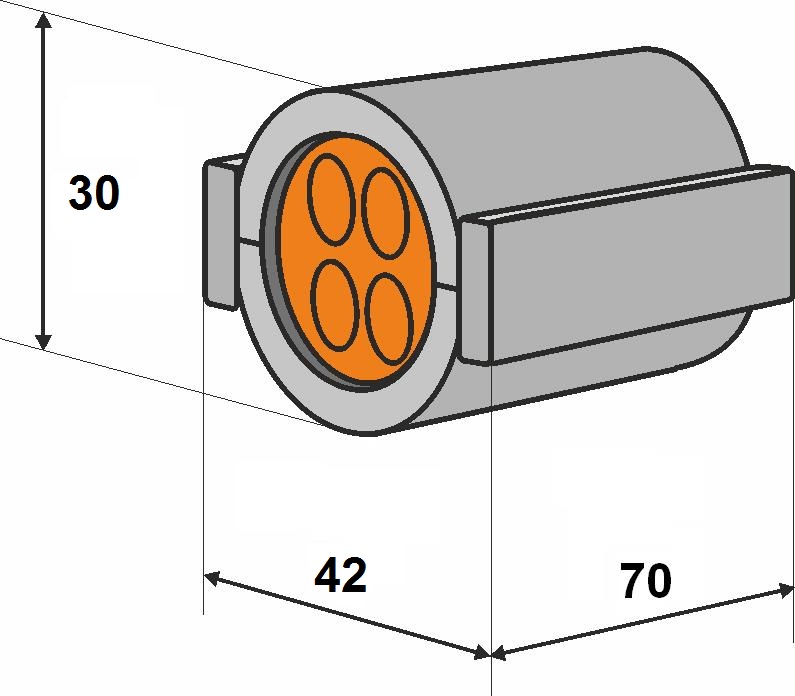

Divisible duct seals 25mm

Suitable for Gas and Watertight sealing of 25mm HDPE ducts, which contain mini / micro ducts and / or (fibre optic) cables.

The modular system will guarantee easy installation of various different cable and duct configurations. Our system is divisible so can be applied at installation or afterwards for retro fitting

The rubber inserts can be custom designed for your specific needs and configuration. The rubber will contain (temporary) blind plugs to make the system more flexible at the installation site.

Download product sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Gas and Watertight ≥ 0.25 bar
Suitable for retrofitting
Easy installation
Slim design
Other versions available upon request

Specifications

ductsealing 25mm

Plastic shells	glassfibre reinforced
Closing key	glassfibre reinforced
Sealing plug	EPDM
Sealing	up to 0.25 bar (0.50 bar can be achieved, please contact our technical department)
Pull-out force duct seal vs duct	≥ 1000N

More info

More Information
More information	Contents Plastic shells (2 items) Closing keys (2 items) Synthetic rubber plug for cavity shapes (1 item) Illustrated installation instructions
Home page product list	No

Videos

Click here to download the video.

Products

Grouped product items
Sku	Product Name	Duct outside diameter (mm)	Configuration	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit
7822691F	Duct seal HDPE 25/6x4mm	25	6x4mm	Order unit 20 pcs/carton
7822692F	Duct seal HDPE 25/1x12mm	25	1x12mm	Order unit 20 pcs/carton
7822693F	Duct seal HDPE 25/1xC12-7mm	25	1x12-7mm	Order unit 20 pcs/carton
7822697F	Ductseal HDPE 25/C5-15mm	25	1xC5-15mm	Order unit 20 pcs/carton
