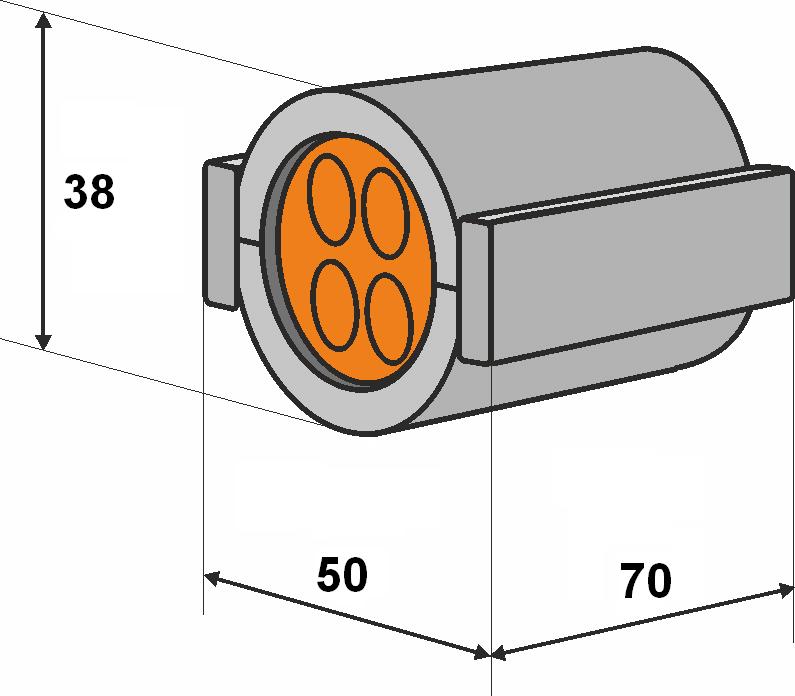

Divisible duct seals 32mm

Go Back

Suitable for Gas and Watertight sealing of 32mm HDPE ducts, which contain mini / micro ducts and / or (fibre optic) cables.

The modular system will guarantee easy installation of various different cable and duct configurations. Our system is divisible so can be applied at installation or afterwards for retro fitting

The rubber inserts can be custom designed for your specific needs and configuration. The rubber will contain (temporary) blind plugs to make the system more flexible at the installation site.

Download product sheet
  • Gas and Watertight ≥ 0,25 bar
  • Suitable for retrofitting
  • Easy installation
  • Slim design
  • Other versions available upon request

ductsealing 32mm

Plastic shells glassfibre reinforced
Closing key glassfibre reinforced
Sealing plug EPDM
Sealing up to 0.25 bar (0.50 bar can be achieved, please contact our technical department)
Pull-out force duct seal vs duct ≥ 1000N
More Information
More information

Contents

  • Plastic shells (2 items)
  • Closing keys (2 items)
  • Synthetic rubber plug for cavity shapes (1 item)
  • Illustrated installation instructions

Divisible duct seal

Home page product list No

Click here to download the video.

Products
Grouped product items
Sku Product Name Configuration

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Qty
78227001F Ductseal HDPE 32/12x4mm 12x4mm Order unit 20 pcs/carton
7822680F Duct seal HDPE 32/2x7+1x12mm 2x7+1x12mm. Order unit 20 pcs/carton
7822669F Duct seal HDPE 32/7x7mm 7x7mm Order unit 20 pcs/carton
7822626F Duct seal HDPE 32/1x10mm+3x7mm 1x10mm+3x7mm Order unit 20 pcs/carton
7822661F Duct seal HDPE 32/2x10mm+1xC8-14mm 2x10mm + 1C8-14mm Order unit 20 pcs/carton
7822632F Duct seal HDPE 32/3x10mm 3x10mm Order unit 20 pcs/carton
7822660F Duct seal HDPE 32/4x10mm 4x10mm Order unit 20 pcs/carton
78227002F Ductseal HDPE 32/1xC11-16-22mm 1xC11-16mm Order unit 20 pcs/carton
7822627F Duct seal HDPE 32/12+10+7,5mm 1x12mm + 1x10mm + 1x7,5mm Order unit 20 pcs/carton
7822667F Duct seal HDPE 32/3x12mm 3x12mm Order unit 20 pcs/carton
7822656F Duct seal HDPE 32/1x14mm 1x14mm Order unit 20 pcs/carton
