FiloSlim LV cable jointing system
FiloSlim LV - The smart cable joint system which insulates and protects your low voltage cable connections.
The components of this hybrid cable joint system are completely interchangeable. You can fill the cable joint with our tried and trusted injection pump or simply by hand.
The FiloSlim resin package comes with an integrated filling nipple. After mixing the resin, the package is placed on the injection valve and opened with a quarter turn. Once the cable joint is filled, remove the packaging with a reverse quarter turn. These simple actions ensure a clean and tidy joint without spillage.
Approved in accordance with NEN EN50393
PATENTED
Smart & Compact cable joints

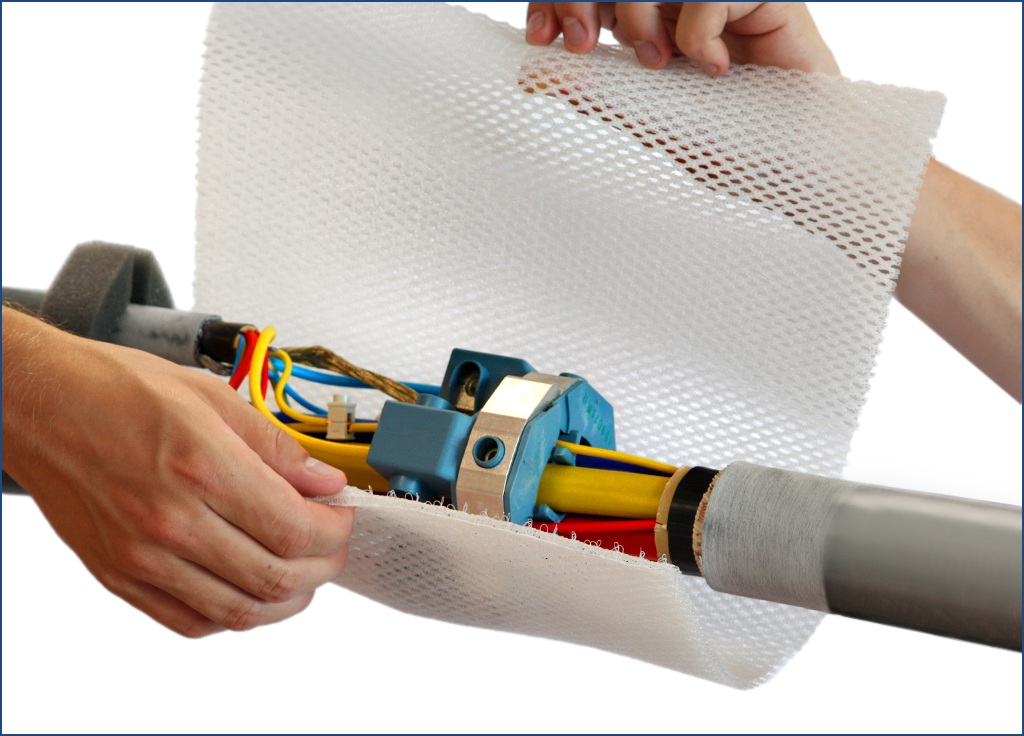

Thanks to the special weave of our new 3D gauze, an optimal insulation distance is achieved with just a few wraps of this gauze. This results in time and labour cost savings and improves the ergonomics of the work.
The gauze also ensures a uniform distribution of resin and reduces the number of cable joint failures caused by wrapping too little gauze around too few critical points, such as a ring clamp.
The FiloSlim injection joint delivers the ultimate flexibility when sealing and protecting low voltage cable connections. With just 5 basic components, you can make a low voltage joint that suits every situation. The system is suitable for every cable joint dimension and all types of cable, including vertical and curved cables.
After applying the 3D gauze, the entire joint is insulated and the moisture-resistant resin can now be applied either by hand or with an injection pump. The open structure of the gauze ensures an even distribution of the resin.
The combination of the gauze and the resin provides the cable joint with good insulation, a perfect seal and excellent mechanical protection during the lifetime of a cable.
| Training | Filoform is known for providing training and providing clear and straight forward assembly instructions. FiloSlim is designed to make a perfect cable joint in any situation. With the special 3D distance gauze you will always achieve a proper isolation distance. Thanks to the unique closed filling system, there is no risk of any leakage. The Filoform resin packaging are under constant quality control. The packages are visually inspected during the filling process and are hereafter subjected to a pressure test (minimum standard 8.000 Newton = 1800 pounds). Filoform is a leader in the development of resins for cable joints and has developed an extremely high quality and moisture resistant resin. The Filofill resin type P2662 is characterized by an excellent flow behavior which can be easily injected by hand. On-site trainingDuring the training the following topics will be covered during the course:
ContactPlease contact us for an appointment. |
|---|---|
