Injection Pump GN-E5

Filoform injection pumps are used to pump the resin under pressure (±2 Bar) into injection joints. The injection pump has a continuously variable piston displacement enabling an optimal flow of the resin into the joint. The ball bearing mechanism reduces the manual effort required to fill the joint.

Download product sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

**New model type GN-E5**

Suitable for resin packs type B and C
Self centering piston. Avoids piston seizure
Cylinder and cover with a PTFE coating thus avoiding adhesion of the resin
Ergonomic hand grip is made from fibre reinforced plastic. Usable at low temperatures
6 months warranty

More info

More Information

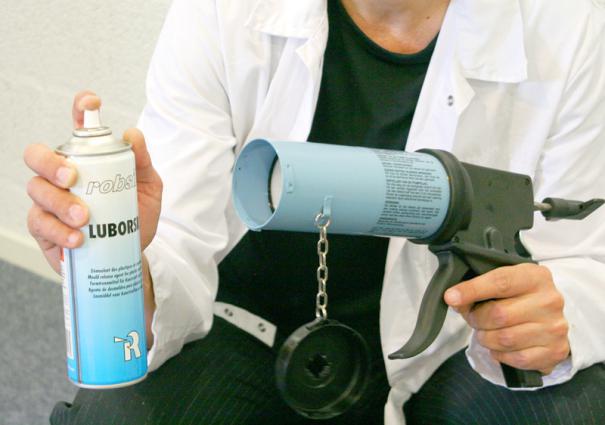

More information	Recommended use In order to achieve correct filling of the cable joint, allow the resin to flow into the injection joint with each pumping stroke. For a long pump life, clean the piston and the interior of the cylinder once a week and apply Luborsil silicone lubricant (Filoform art.nr. 80800UK) Download: Injection pump instructions
Home page product list	No

Products

Grouped product items
Sku	Product Name	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit
80397KUK	Injection gun GN-E5 with ball bearing mechanism	Order unit per piece
80800UK	Luborsil silicon spray 500ml	Order unit 12 pcs/carton
80398UK	Felt ring for injection pump	Order unit 5 pcs/bag
